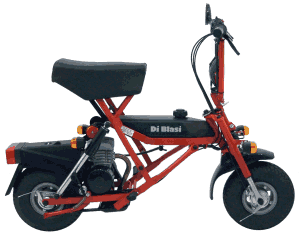

 Folding Moped Mod. R7



Technical Specifications


Folding Moped Di Blasi mod. R7

Versions


Accessories


Specifications

  • Dimensions
    • Open:
      • Overall length 128 cm (50,3")
      • Wheel base 92 cm (36,8")
      • Width 57,5 cm (22,6")
    • Folded:
      • Length 79 cm (30,7")
      • Width 35 cm (14,5")
      • Height 61 cm (24")
  • Unladen mass 31,5 kg (64,9 Lbs)
  • Rim size (front & rear) 5"
  • Tyre size (front & rear) 4.00 - 5"
  • Brakes drum diameter 70 mm (front & rear)
  • Electrical equipment 12V - 65W
  • Tank capacity 3 litres (3 quarts)
  • Fuel consumption 35 km/lt (approx)
  • Maximum speed 45 km/h (30 mph)
  • Seating capacity 1
  • Max load capacity: 110 Kg
  • Engine
    • manufacturer & model DI BLASI M1
    • single cylinder, two stroke
    • bore 39 mm
    • stroke 41,8 mm
    • cylinder capacity 49.9 cc
    • compression ratio 8,65 : 1
    • maximum power 0,86 KW at 4000 rpm
    • maximum torque 2,56 Nm at 3000 rpm
    • spark plug:
      NGK BR6HS
      or AC R42CF
      or BOSCH WR7A
      or CHAMPION QL7J5
      or DENSO W20FSR-U
      or MARELLI CW7NR
  • carburetor:
    DELL'ORTO SHA 14-12
    main jet size: 53
    choke tube: 12 mm
  • fuel regular gasoline with 2% of 2 stroke oil
  • primary drive V-Belt variator
    • ratios:
      • min 1:1,577
      • max 1: 3,736
  • secondary drive timing belt ratio 22/102 = 1 : 4,636
  • starting foot kick starter
